   WR-G39WSBe
The WiNRADiO WR-G39WSBe Sonobuoy Receiver is a third-generation receiver specifically designed for sonobuoy telemetry operation.

It is particularly suitable for standard DIFAR sonobuoys operating in the 136 to 173.5 MHz standard sonobouoy VHF band. This standard frequency range can be extended to UHF frequencies (up to 1.8 GHz) to suit customized telemetry requirements.

The WR-G39WSBe features an antenna input, analog output, as well as digitized audio output via the USB bus for spectrum analysis and monitoring.

The fully self-contained receiver can be used with a standard PC or even laptop or mounted inside an industrial-grade instrument rack. The receiver is supplied together with Windows control software (Linux support is optional) and support documentation.

The receiver's modular architecture allows for a high-degree of customization for application-specific requirements. The receiver also contains its own DSP, making it possible to develop customized solutions featuring various on-board signal processing, analysis and decoding facilities.

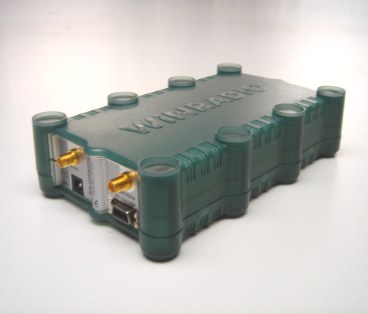

WR-G39WSBe Sonobuoy Receiver

As most of the RF signal processing is performed by the receiver, the PC hardware and software requirements are modest. Up to eight receivers can be controlled by the same USB hub, and controlled separately and independently. WiNRADiO can also supply complete rack-mounted multi-channel systems.

The WR-G39WSBi receiver is supplied with Windows based application software. Programmers' API and Linux drivers are available upon request, suitable for integration in custom designed sonobuoy systems.

The Windows application software shows a graphical representation of all installed receivers (a virtual control panel), making it possible to observe the status of all receivers at a glance and make individual adjustments if necessary. Each receiver can be monitored and the real-time spectrum of the demodulated signal observed. An mixing facility is provided where a particular receiver can be selected for audio monitoring by simply clicking on the corresponding receiver panel.

WR-G39WSBe Virtual Control Panel

WR-G39WSBe Control Panel

Technical Specifications
Frequency range136.000-173.500 MHz
Channel spacing375 kHz
ModesFM (DIFAR)
Sensitivity0.9 µV
IF bandwidth230 kHz @ -6 dB
Skirt selectivity470 kHz @ -25 dB
730 kHz @ -60 dB
Frequency response5 Hz to 25 kHz @ ± 1 dB
5 Hz to 40 kHz @ ± 2 dB
Output level1.0 ± 0.2 V rms @ 75 kHz deviation and 1 kHz modulation frequency
RSSI range80 dB typ.
Image rejection70 dB or better
Tuning accuracy±1 ppm
Frequency stability±0.5 ppm
Input impedance50 ohm
Output impedance600 ohm
Connectors2 x SMA: RF input, demodulator output
Interface USB (1.0 and 2.0 compatible)
Power requirements12 V DC @ 500 mA
Dimensions Length: 166 mm (6.5")
Width: 97 mm (3.8")
Height: 41 mm (1.6")
Weight 430 g (15.1 oz)
Ambient temperatureStorage: -20º to +75º C
Operation: 0º to +45º C

Specifications are subject to change without notice due to continuous product development and improvement.

Interested? Please use our Rapid Response Form to register your interest in this product, or to request more information.
