   WR-G39DDCe 'EXCELSIOR'
Overview

The WiNRADiO WR-G39DDCe 'EXCELSIOR' is a high-performance HF/VHF/UHF/SHF software-defined receiver with a frequency range from 9 kHz to 3500 MHz, with two independent channels of 4 MHz wide instantaneous bandwidth available for recording and further digital processing, plus a 16 MHz wide real-time spectrum analyzer.

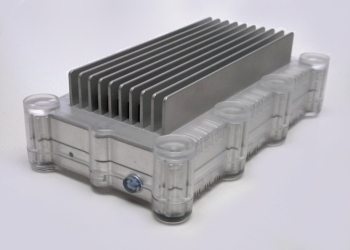

WiNRADiO WR-G39DDCe
receiver

The receiver offers an unparalleled flexibility given its SDR architecture, respectable dynamic range, high sensitivity, scanning speed and accuracy of performance, making it capable of filling not only the role of a monitoring receiver but also that of a fast search receiver and measuring receiver, with many operational and instrumentation features not usually found on receivers of any price category.

 Frequency range 9 kHz to 3500 MHz
     (except cellular bands where required by law)
 Ultra-fast search speed 1 GHz/s
 Two independent receiver channels
 Real-time spectrum analyzer up to 16 MHz wide
 Unlimited width swept spectrum analyzer
 Audio spectrum analyzer
 Audio and DDC recorder
 High sensitivity
 Excellent dynamic range
 Numerous signal analysis tools
 Numerous types of search and scanning modes
 Numerous precise measuring tools
 Optional APCO P25 decoder
 Optional trunk tracking
 Networking version of application software available
 USB 2.0 interface

The receiver has a robust front-end, which features an up-converter for excellent suppression of mirror images, eliminating a need for complex pre-selector filters which introduce distortion and reduce the noise figure.

The receiver connects to an IBM-compatible PC via the USB port. Several receivers can be controlled by a single PC to form a multi-channel receiver system.

This is the first time a receiver of such advanced specification and unique combination of features is being offered to the general marketplace. The receiver is intended for government, military, security, surveillance, broadcast monitoring, industrial and demanding consumer applications. Easily installed to any modern computer with the USB interface, this receiver represents an excellent general-purpose mobile and stationary solution for HF/VHF/UHF/SHF monitoring and surveillance.

Software

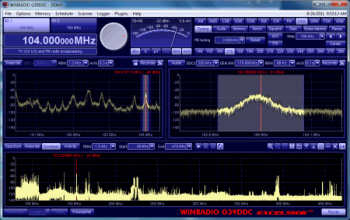

WR-G39DDC Front Panel
(Click on panel to enlarge.)

The WR-G39DDCe software contains numerous advanced features such as several types of searching and scanning, five types of squelch, many tuning options, virtually unlimited memories and a rich on-line help facility.

There are two concurrent DDC channels with 24 selectable output bandwidths, one ranging from 20 kHz to 4 MHz and the other from 20 kHz to 2 MHz. Each can be used as an independent "virtual receiver". There is is also a simultaneous 16 MHz wide real-time spectrum analyzer.

There are numerous demodulation modes, continuously variable demodulator bandwidth from 1 Hz to 320 kHz (in 1 Hz increments), waterfall spectrum analyzers, scanning, searching, logging and task scheduling facilities, as well as an audio real-time spectrum analyzer, test and measurement functions, noise blankers and notch filters.

There is also an integrated recorder, making it possible to instantly record and playback the received signal both at the DDC (4 MHz wide) and audio levels. Recording offers also pre-buffering feature in order not to lose any transmission.

The receiver is entirely software-defined, which means that additional demodulations or decoding modes can be easily added by a mere software change.

System requirements:

 PC with 2 GHz quad core CPU or faster
 One free USB 2.0 socket
 Windows XP, Vista, Windows 7 or 8
