  WiNRADiO WR-DASP-2500 Dual-Action Surge Protector

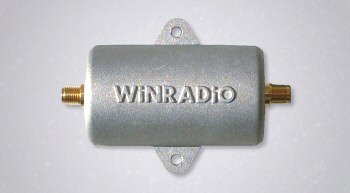

WR-DASP-2500 Dual-Action Surge Protector The WiNRADiO WR-DASP-2500 Dual-Action Surge Protector is designed to protect radio receivers from electrostatic discharges into the antenna input. Voltages exceeding the protector's trip point are shunted to the ground.

Dual-action surge protection is accomplished by combining a high-performance gas discharge tube intended to absorb the bulk of the surge energy, with an ultra-fast-acting semiconductor suppression diode responsible for an exceptionally fast reaction time of the device.

The WiNRADiO WR-DASP-2500 Dual-Action Surge Protector is self-recovering and designed to withstand multiple surges.

The WiNRADiO WR-DASP-2500 Dual-Action Surge Protector is especially suitable for use with WiNRADiO G3 series receivers. It is suitable for third-party receivers as well.

Surge protection is achieved in two stages: The first stage is designed against short-time voltage spikes exceeding 17 V. Its response time is less than 1 ns. The second stage is activated when voltage spikes exceed 75 V. This stage is capable of absorbing considerable energy, with longer spikes lasting up to several seconds.

The combination of exceptionally fast-acting and energy-absorbing circuits results in excellent protection of radio receiving equipment from atmospheric discharges, transients and electrostatic build-up.

Features

Dual-action of fast semiconductor and gas-discharge tube
Fast reaction time
High energy absorption
Frequency range 9 kHz to 2500 MHz
Flat passband
Very low insertion loss
Very low capacitance
Rugged weatherproof construction
Small size and weight
Simple installation

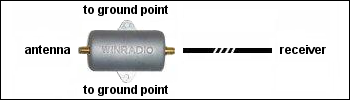

WR-DASP-2500 Dual-Action Surge Protector Installation The WiNRADiO WR-DASP-2500 Dual-Action Surge Protector is connected to the antenna and the receiver via an SMA connector using a suitable coaxial cable. It should be located as far away as possible from the receiver. The device needs to be well grounded for proper operation. Grounding is via the mounting lugs of the die-cast aluminium enclosure to a suitable ground point, for example the antenna mast.



Technical Specifications
Insertion loss 0.3 dB @ 200 MHz
Frequency range 9 kHz - 2500 MHz
Impedance (in/out) 50 Ohm
Capacitance 1.5 pF
Initial response time 1 ns
Gas tube maximum impulse spark-over voltage (1 kV/1 µs) 700 V
Gas tube impulse discharge current (10/1000 µs) 50 A
Gas tube AC discharge current (50 Hz, 1 s) 5 A
Gas tube insulation resistance 1000 MOhm
Suppression diode current leakage 0.05 µA
Connectors SMA (in/out)

Specifications are subject to change without notice due to continuous product development and improvement.
