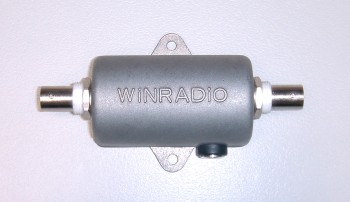

WR-BT-650 HF/VHF Power Injector (Bias 'T') This device provides a means of injecting DC power in a coaxial cable, to power remotely-located devices such as active antennas, low-noise amplifiers and downconverters. It features a very flat frequency response, making it possible to use this device in a very wide frequency range, from 20 kHz to 650 MHz.

The WiNRADiO WR-BT-650 Power Injector is especially suitable for use with WiNRADiO AX-81S Active HF Antenna.

WiNRADiO WR-BT-650 Power Injector Features

 Frequency range 0.02 to 650 MHz
 Flat frequency response
 Low insertion loss
 Wide range of DC voltages
 Rugged weatherproof construction
 Simple installation

Installation

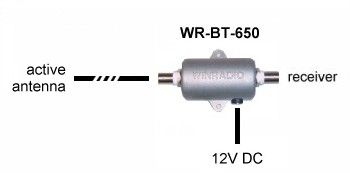

WR-BT-650 Power Injector Installation In this example, an active antenna (such as the AX-81S antenna) is powered via the coaxial cable. On the receiver side, the power is injected in the coaxial cable using the WiNRADiO WR-BT-650 Bias 'T' device. Such arrangement makes it possible to conveniently power the antenna via the coaxial cable and eliminate additional wiring.

A suitable 12 V power supply to use with the WR-BT-650 Power Injector is the WiNRADiO low-noise linear model SF-41.



Technical Specifications
Frequency range 0.02 to 650 MHz
Insertion loss 2 dB
Connectors 2 x BNC
Power jack OD=5.5mm ID=2.5mm (center positive)
Power 12V DC (24V DC max) @ 200 mA max
Enclosure Diecast aluminium
Size 60 x 35 x 30 mm (2.3 x 1.4 x 1.2 in)
(excluding connectors)
Weight 100 grams (3.8 oz)

Specifications are subject to change without notice due to continuous product development and improvement.



This product is also available via .   Order it now!
