  WiNRADiO AX-07B Flexible VHF/UHF Antenna
WiNRADiO AX-07B Flexible Antenna The AX-07B is a small, rugged antenna designed for reception in the VHF/UHF bands.

The flexible antenna is encapsulated in a weatherproof rubber sheath resistant to chemical corrosion, abrasion, ozone, salt water and ultra violet radiation, making it ideal for outdoor applications.

Connection to the receiver is by way of a male BNC-type connector. In conjunction with the WiNRADiO AX-91M Magnetic Antenna Base, this antenna forms a compact, low-cost antenna system suitable for many types of surveillance and monitoring applications in mobile or stationary environments.

Although designed to particularly suit the WiNRADiO range of receivers, the antenna will work equally well with third party receivers.

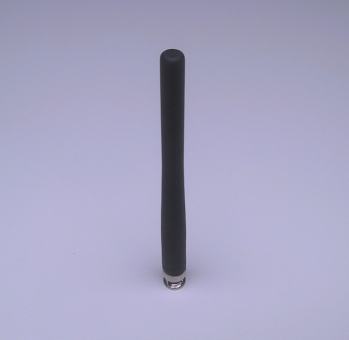

WiNRADiO AX-07B Flexible Antenna

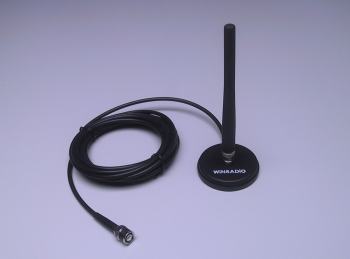

(AX-07B shown with WiNRADiO AX-91M Magnetic Antenna Base.)

Recommended accessory

 WiNRADiO AX-91M Magnetic Antenna Base

Recommended receivers

 WiNRADiO WR-G305e (0.009 - 1800 MHz)
 WiNRADiO WR-G315e (0.009 - 1800 MHz)
 WiNRADiO WR-1550e (0.15 - 1500 MHz)
 WiNRADiO WR-3150e (0.15 - 1500 MHz)
 WiNRADiO WR-3500e (0.15 - 2600 MHz)
 WiNRADiO WR-3700e (0.15 - 4000 MHz)

Technical Specifications
Type Flexible RX broad-band antenna
Frequency range 100 - 900 MHz
Impedance 50 ohm
Connector BNC (male)
Operating temperature -10º to 60ºC
Length 160 mm (6.3")
Weight 30 g (1 oz)

Specifications are subject to change without notice due to continuous product development and improvement.
