   WR-ARP-DSA-AX400 Dish Support Assembly
WR-ARP-DSA-AX400 Dish Support Assembly The complete WR-ARP-DSA-AX400 Dish Support Assembly is particularly suitable for the WiNRADiO AX-400D Dish Antenna and consists of the following components:

 WR-ARP-RA-6535 Rotator Arm
 WR-ARP-CA-1919 Counterweight
 WR-ARP-CW-155 Counterweight

These items can be also purchased individually and are described below.

Component Description
Rotator Arm WR-ARP-RA-6535
Rotator Arm
Two Rotator Arms are needed to fit the dish to the rotator. The arms are identical and made from 65 mm x 35 mm (2.56" x 38") rectangular hollow steel sections, with nut inserts for easy mounting of the counterweight arms. The rotator arms are shipped with pre-drilled holes for quick mounting onto the dish brackets. Welded onto each rotator arm is a round solid steel bar, precision machined to fit perfectly into the rotator elevation shaft holder. A zinc plated finish ensures improved durability
Counterweight Arm WR-ARP-CA-1919
Counterweight Arm

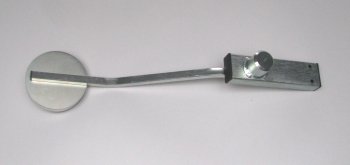

Two Counterweight Arms are required to act as support booms for the counterweights. The counterweight arms are made from 19 mm (0.75") square hollow steel sections and bent in a zigzag form to provide unobstructed rotator elevation movement through 180 degrees. The counterweight arms are shipped with pre-drilled holes and bolts for quick and easy mounting of the counterweights and fitting to the rotator arms. A zinc plated finish ensures improved durability.
Counterweight WR-ARP-CW-155
Counterweight
Eight Counterweights with a total mass of 7 kg (15.4 lb) are required to balance out the weight of the dish. These are mounted in a configuration of four counterweights per counterweight arm. Each counterweight is 155 mm (6.1") in diameter and made from 6 mm (0.24") thick mild steel. The counterweights are shipped with pre-drilled holes for quick and easy mounting onto the counterweight arms. A zinc plated finish ensures improved durability.

Interested? Please use our Rapid Response Form to register your interest in this product, or to request more information.
